Extnix Infotainment System Installation in Mazda BT50 UP 2012 - 2015
Disclaimer: These instructions are for reference only. The correct and most appropriate procedure may vary depending on (without limitation) vehicle type, user experience, product specifications and/or changes in technology, laws, regulations or best practices.
We strongly recommend using service of a qualified professional to install the audio system.
Extreme Electronix Pty Ltd is not responsible for and will not accept any direct and/or indirect liability for: cost; damages; claims, warranty; accidents; injuries; death; law and traffic violations; and expenses that is or may be incurred or suffered by you as a result of carrying out the activities in this how to installation Instructions.
Let us Start – Journey from Sad to Fab!
Start
Safety First - Disconnect the negative battery terminal.
Supported unit – Only following unit is supported.
1 – Take the Aircon panel out using a pry tool. Air con panel is held by 4 Clips.
2 – Catiously pull out the main radio fascia, it is also held by multiple clips.
3 – Ensure all the clips are saved as they will be relocated to the new extnix infotainment system for Mazda BT50 to secure it.
4 – Note the position of the screws holding the factory radio and top trip computer.
5 – Pull out the factory radio very slowly and avoid breaking the factory radio connector.
6 – In 2012-2015 GT or XTR models with GPS on top small screen, the radio antenna is located there. Cable connected to the main unit will be just a pass through. When top screen is removed there will be no reception on the pass-through cable. In this case, please connect the supplied radio antenna patch cable to the antenna connector behind the top screen.
7 – Secondary harness is connected behind the top screen.
8 – Use pry tool to dislodge the secondary harness and move it closer to the main harness.
9 – Connect the supplied primary and secondary harnesses, Canbus module and the Radio antenna.
10 – Relocate all the clips and the air vents to the new Extnix frame.
11- Run the additional supplied cables for the GPS, 4G Antenna, Bluetooth Mic and USBs.
GPS and 4G Antenna – In dash as high a possible avoiding metal parts on top. Ideally in the gap behind the top screen. Top screen will not be installed.
Bluetooth Mic – Ideal locations include top of the A-pillar, or on Steering column.
USB Ports – In the Glove box.
Additional Tips – For the Reverse camera, pass the cable through the gromet located behind the 2nd row seats (double cab) on the passenger side.
Reverse Cam Patch lead will connect to Port 7
CanBus will connect to Port 4

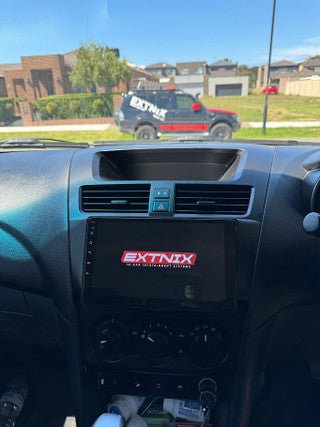

Extnix Infotainment System is now fully installed.
Is time to Enjoy the Fab!
